Product
Escha
8031376
PB-WAKCSW4.5K
Request a Quote
Image copyright: Escha

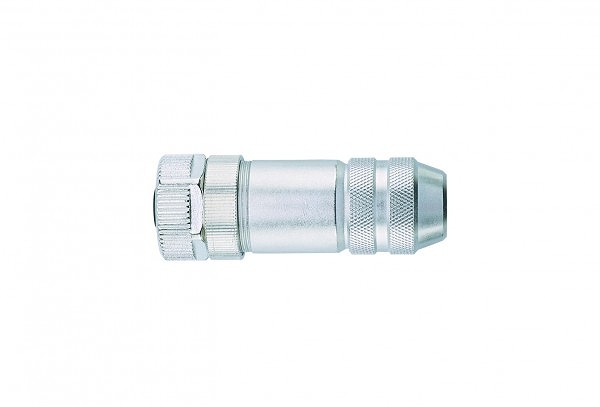

Escha 8031376
PB-WAKCSW4.5K
M12 female, straight, field-wireable, 5 poles, B-coded, screw-/clamp contact, shielded, 125V, 4A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Connector: | female, straight, M12 |
| Number of pins: | 5 |
| Coding: | B |
| Rated voltage: | 125V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Cable outlet: | 6,5...8,5 mm |
| Connecting cross-section: | max. 0.75 mm² |
| Ambient temperature product: | -40°C...+85°C |
| Contact material: | Metal, CuZn, gold-plated |
| Grip body material: | Zinc die-cast, nickel-plated |
| Contact-carrier material: | Plastic, PA, BK |
| Coupling nut material: | Metal, GD-ZN, nickel-plated |
| Connecting type: | Screw-/clamp contact |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP67 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.05 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
