Product
Escha
8019721
SKPC3S
Request a Quote

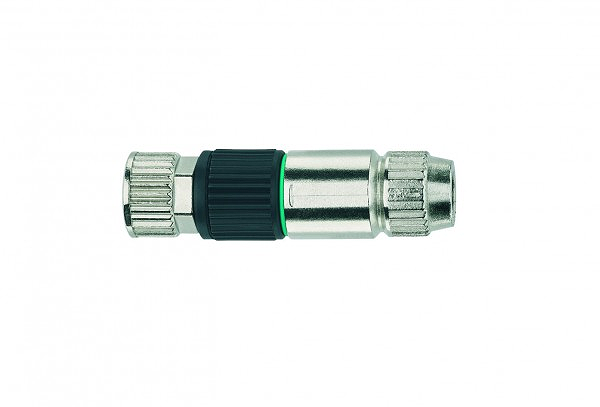

Image copyright: Escha
Escha 8019721
SKPC3S
M8 female, straight, field-wireable, 3 poles, insulation displacement contact, 32V, 4A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Connector: | female, straight, M8 |
| Number of pins: | 3 |
| Rated voltage: | 32V |
| Resistance (mΩ): | 10 |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Cable outlet: | 2,5...5,1 mm |
| Connecting cross-section: | 0.14…0.34 mm² | AWG26…22 |
| Ambient temperature product: | -40°C...+85°C |
| Contact material: | Metal, CuZn, gold-plated |
| Grip body material: | Zinc die-cast, nickel-plated |
| Contact-carrier material: | Plastic, PA, BK |
| Coupling nut material: | Metal, GD-ZN, nickel-plated |
| Connecting type: | Insulation displacement contact |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP67 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
