Eaton
LP-CC-25
LOW PEAK CC TIME DELAY LP-CC-25
Request a Quote
Image copyright: Eaton

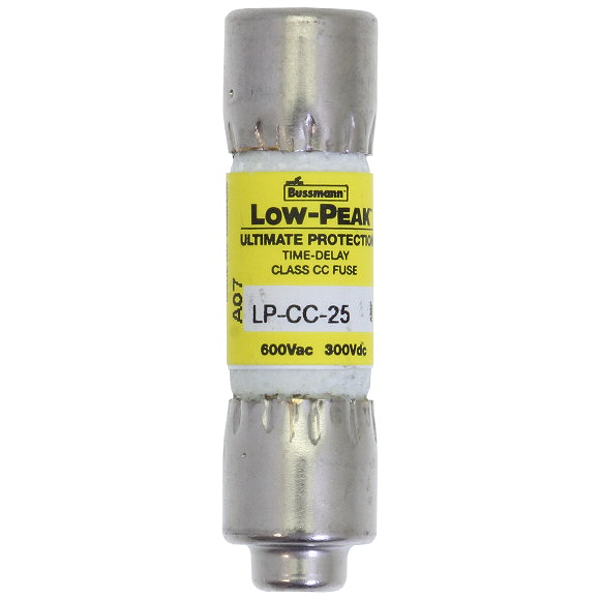

Eaton LP-CC-25
LOW PEAK CC TIME DELAY LP-CC-25
Fuse-link, LV, 25 A, AC 600 V, 10 x 38 mm, CC, UL, time-delay, rejection-type
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Fuse, fuse-link, low voltage, 25 A, AC 600 V, 10 x 38 mm, Class CC, UL, time-delay, cylindrical, rejection-type. Breaking capacity 200 kA, time-delay 12 seconds (minimum) at 200% of rated current
Logistic parameters
| ECCN: | |
| Country of Origin: | MX |
| EAN: | |
| Weight: | 0.01 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
