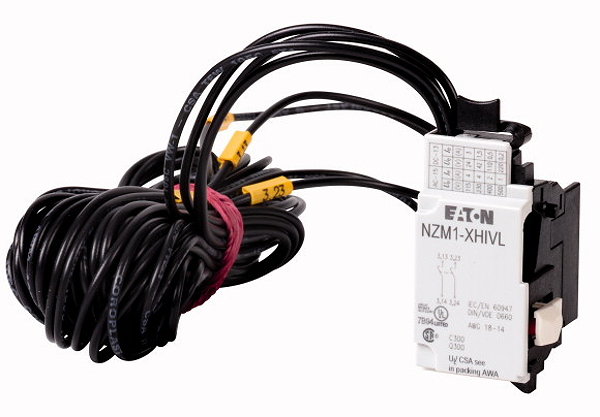

Eaton 259432

NZM1-XHIVL

Auxiliary contact, 2early N/O, operates as an early-make contact, 3m cable

Description

EL-Nummer (Norway). 0004358869. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: for interlocking and load shedding circuits, as well as for early make of the undervoltage release in main switch / emergency switching off applications. Not in conjunction with NZM…-XU… undervoltage release or NZM…-XA… shunt release early make with switch on and switch off (manual actuation): approx. 20ms. With 3 m connection cable instead of screw connection. Can be used for: NZM1(-4), PN1(-4), N(N/O)1(-4)
