Eaton 222617

T0-2-8021/I1

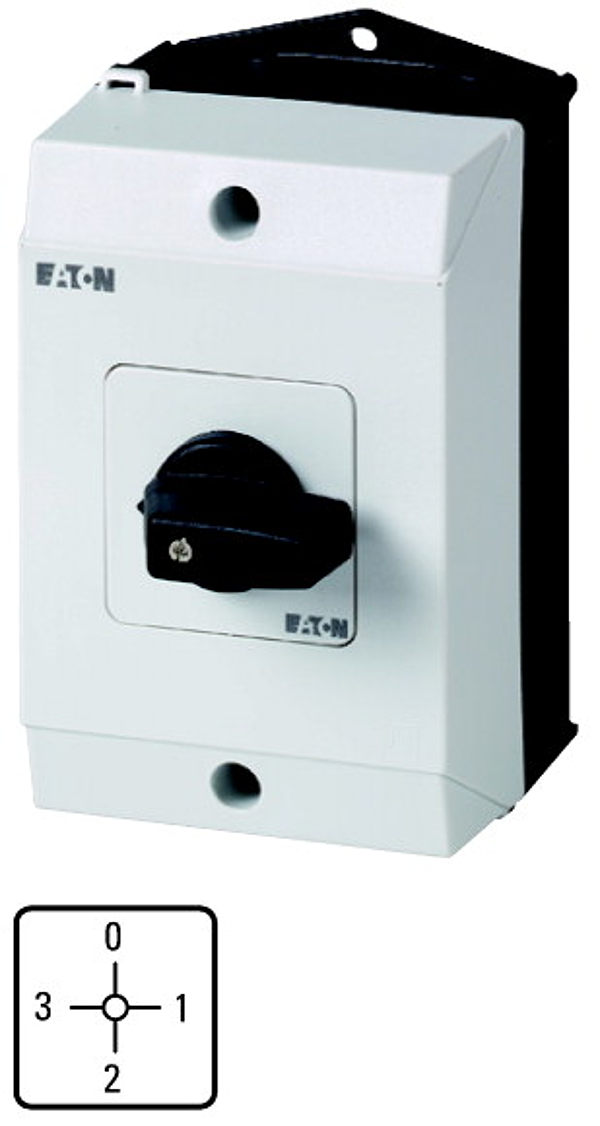

Ammeter selector switches, T0, 20 A, surface mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, With 0 (Off) position, 3-0-1-2, Design number 8021

Description

Cam switch according to IEC/EN60947, size T0, in the surface mounting enclosure, front plate approximately 48X48, degree of protection IP65, with black thumb-grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, centre mounting, rear mounting IVS service distribution board mounting.
