216532
M22-I3-M1

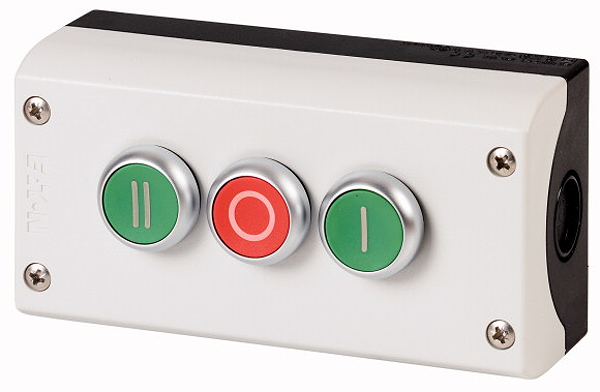

Housing, Pushbutton actuators, Enclosure, momentary, 3 NC, 3 N/O, Screw connection, Number of locations 3, Grey, inscribed, Bezel: titanium
Alternate Catalog No. M22-I3-M1Q. EL-Nummer (Norway). 4355303. Housing, Product range: RMQ-Titan, Complete unit, Design: Enclosure, momentary, Connection type: Screw connection, Number of locations: 3 Qty., Colour Enclosure covers: Grey, Colour RAL Value: RAL 7035, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 3 NC, Contacts N/O = Normally open: 3 N/O, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Front dimensions: 153 x 80, Standards: IEC/EN 60947, VDE 0660, Mounting position: As required
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.33 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
