Product
Eaton
188042
M30I-FDL-G-X32
Request a Quote
Image copyright: Eaton

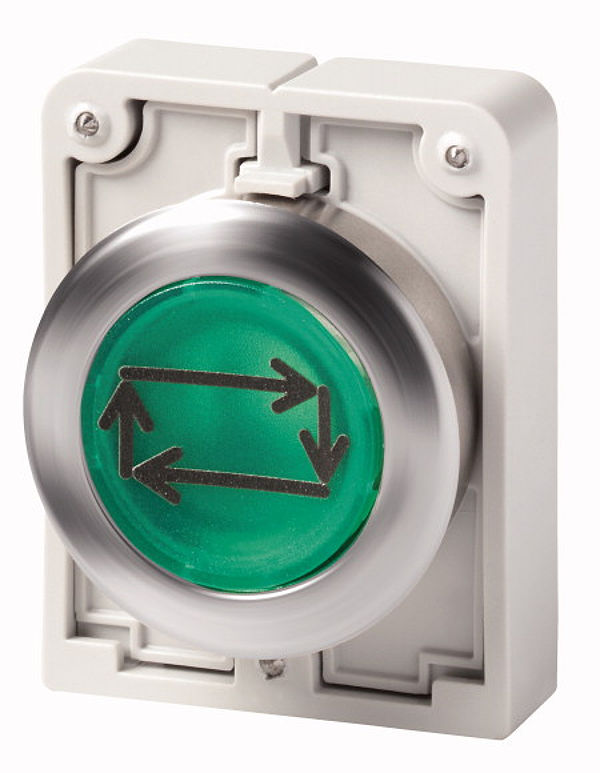

Eaton 188042
M30I-FDL-G-X32
Illuminated pushbutton actuator, Flat Front (drilling dimensions 30.5 mm), flat, momentary, green, inscribed, Front ring stainless steel
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. M30I-FDL-G-X32. Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: flat, momentary, button plate: green, Button plate inscribed, Degree of Protection: IP66, IP67, IP69, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Standards: IEC/EN 60947, VDE 0660
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
