Product
Eaton
184258
IZMX-M40-48DC-1
Request a Quote
Image copyright: Eaton

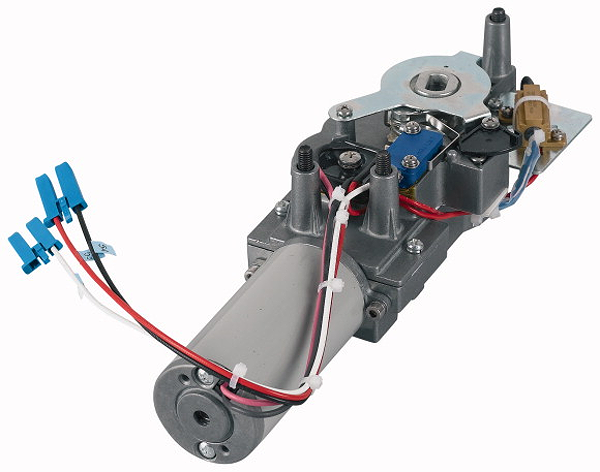

Eaton 184258
IZMX-M40-48DC-1
Motor operator 48 VDC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. 68D2905G54. EL-Nummer (Norway). 0004398601. Accessories, Motor operator, The motor automatically tensions the spring force storage mechanism for remote or local actuation., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 48 V DC V, Operating range x US 0,85 - 1,1 Factor, max. Betriebsstrom In 3 A, max. Anlaufstrom (35ms) In 13.5 A, max. Leistung AC/DC 175 VA/W, max. Anlaufleistung (35ms) AC/DC 3 VA/W, For use with IZMX40…, INX40…
Logistic parameters
| ECCN: | |
| Country of Origin: | US |
| EAN: | |
| Weight: | 1.25 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
