Eaton 183976

IZMX-TH403-4000-1

Connection 3p horizontal

Description

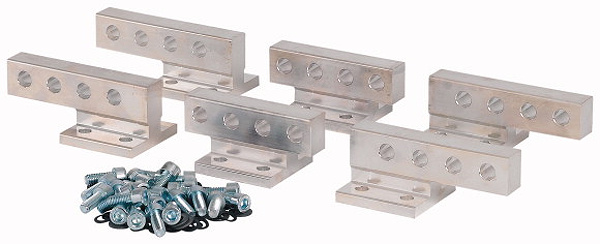

Alternate Catalog No. 65A3137G11. EL-Nummer (Norway). 0004398386. Accessories, Horizontal connections, This connector kit includes T-shaped adapters for the inner main terminals and L-shaped adapters for the outer main terminals., The L shape makes it possible to move the pole centers outwards, allowing for bars of up to 120 mm to be connected., This connector kit is only intended for the 4,000 A horizontal terminal., Rated current In 4000 A, Pole 3, For use with IZMX40…3…40F, IZMX40…3…40W, INX40…3…40F, INX40…3…40W
