Eaton 174733
EU2E-SWD-2PT

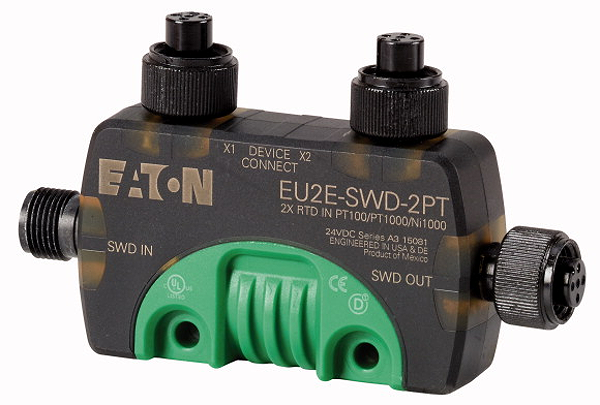

SmartWire-DT IP67 T-Connector analog module, two configurable Pt100/Pt1000/Ni1000 temperature inputs, two M12 I/O sockets
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. EU2E-SWD-2PT. EL-Nummer (Norway). 4560911. SWD module with IP69K degree of protection for connecting up to two temperature sensors, automatic address setting, PT100 temperature sensor parameterizable, pt1000, NI1000, scan time and averaging parameterizable, –50 °C to +400 °C temperature range, I/O connection with 2/3-wire configuration with M12 socket for each input
Logistic parameters
| ECCN: | |
| Country of Origin: | MX |
| EAN: | |
| Weight: | 0.09 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
