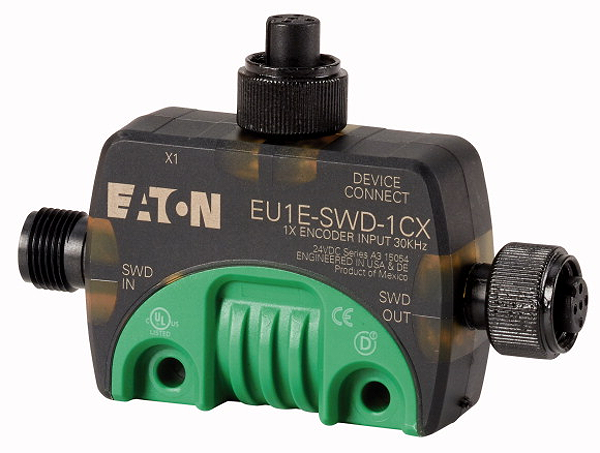

Eaton 174721
EU1E-SWD-1CX
SWD T-Connector counter module IP69K, one counter input with power supply, M12 I/O socket
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. EU1E-SWD-1CX. EL-Nummer (Norway). 4560906. SmartWire-DT module with IP67 degree of protection for connecting one digital meter; 24 VDC, 70 mA short-circuit proof power supply for counter; automatic address setting; 24 VDC simple counter, incremental encoder (A, B, R) with X1, X2, X4 encoding; Up/Down Counter up to 30 kHz; counter connection with M12 socket
Logistic parameters
| ECCN: | |
| Country of Origin: | MX |
| EAN: | |
| Weight: | 0.07 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
