Product
Eaton
174719
EU1E-SWD-1XA-1
Request a Quote

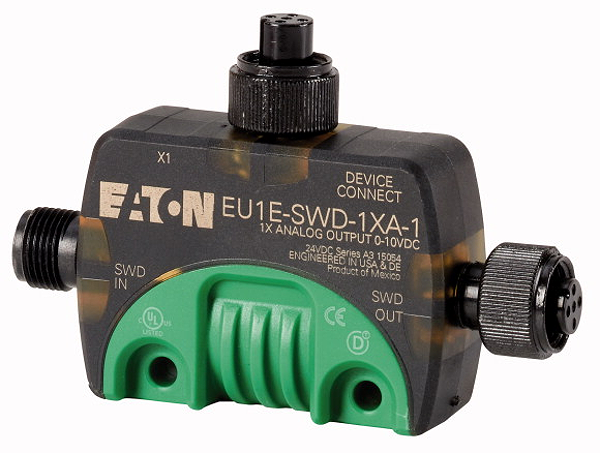

Image copyright: Eaton
Eaton 174719
EU1E-SWD-1XA-1
SmartWire-DT IP67 T-Connector analog module, one 0 - 10 V analog output with power supply, one M12 I/O socket
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. EU1E-SWD-1XA-1. EL-Nummer (Norway). 4560904. SmartWire-DT module with IP67 degree of protection, can be used to connect one analog output, 24 VDC 70 mA short-circuit proof sensor power supply, automatic address setting, 0 – 10 V output, 12-bit resolution, max. output current of 10 mA, short-circuit proof, I/O connection with M12 socket
Logistic parameters
| ECCN: | |
| Country of Origin: | MX |
| EAN: | |
| Weight: | 0.07 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
