Eaton 171459

SL7-SWD

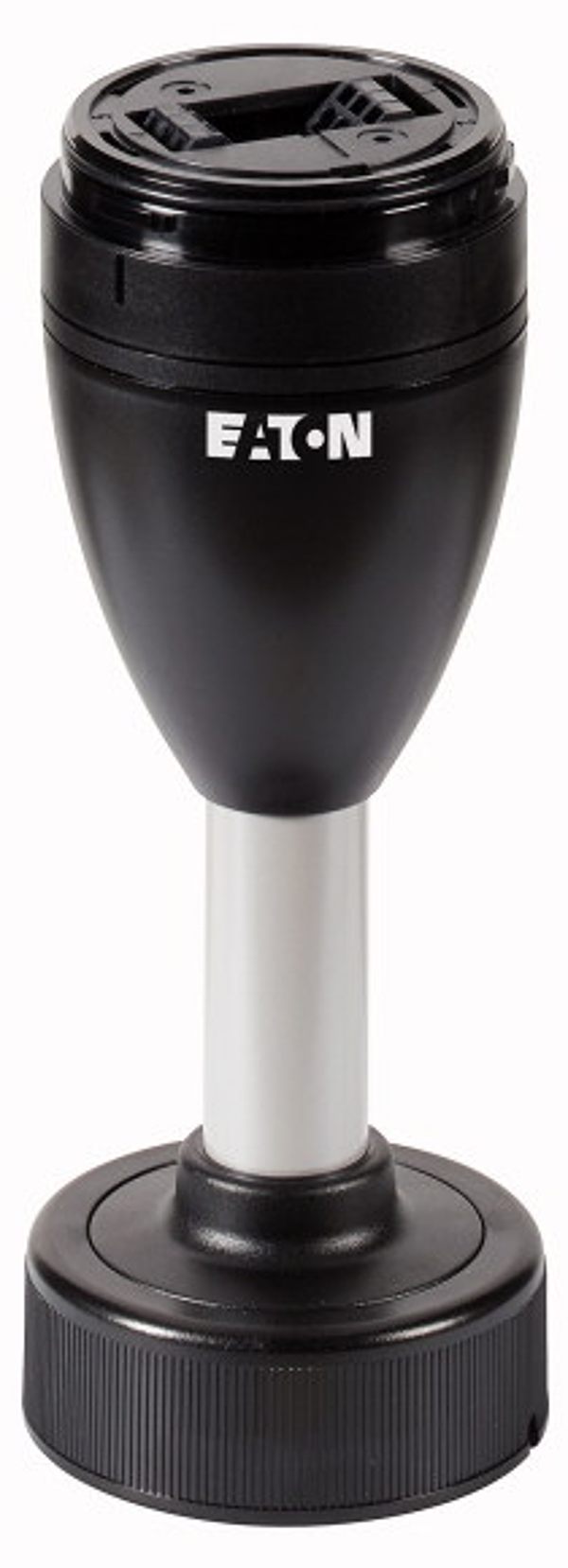

Base module;connection to SmartWire-DT

Description

Alternate Catalog No. SL7-SWD. EL-Nummer (Norway). 4137714. Base module, Colour black, Aluminum color tube, Product range: SL signal towers, SmartWire-DT slave, Subrange: SmartWire-DT Signal towers, Connection technique: Blade terminal SWD4-8MF2, Mounting type: for horizontal mounting, Fitted with: Base with base adapter for slipping onto place (rapid mounting and wiring system), including cover, Tube length: 100 mm, Description: External power supply connectable (24 V DC), Configurable with SWD‐Assist (planning and ordering tool), Further technical data, see manual MN05006001Z., Number of modules: max. 5 modules, max. 0.3 A per module, For use with: SL7-L-…, SL7-BL-…, SL7-FL-…, SL7-AP-…, Connection to SmartWire-DT: yes, Standards: IEC/EN 60947-5-1, IEC degree of protection: IP66, IEC/EN 60529, Protection type UL: Type 4, 4X, 13
