Product
Eaton
167310
TH-TW-1K
Request a Quote
Image copyright: Eaton

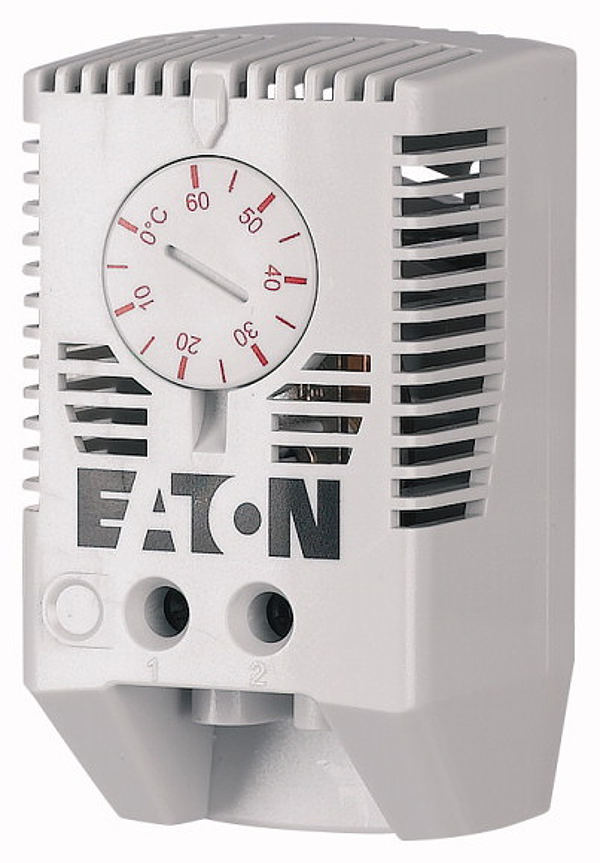

Eaton 167310
TH-TW-1K
Thermostat
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. TH-TW-1K. Thermostat with temperature delta of 1 K; adjustable temperature; with changeover contact with snap-action; temperature range 0-60C°; min. switching voltage 120- 240V AC 10A max. 30W; degree of protection IP20; bimetallic strip sensor type; screw terminals for 0.5-2.5mm² cable cross-section; temperature feedback; suitable for operating fans and heating systems; snap fitting for 35mm rigid busbar as per EN 60715; color RAL7035
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.20 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
