Eaton 167268

TH-HYG

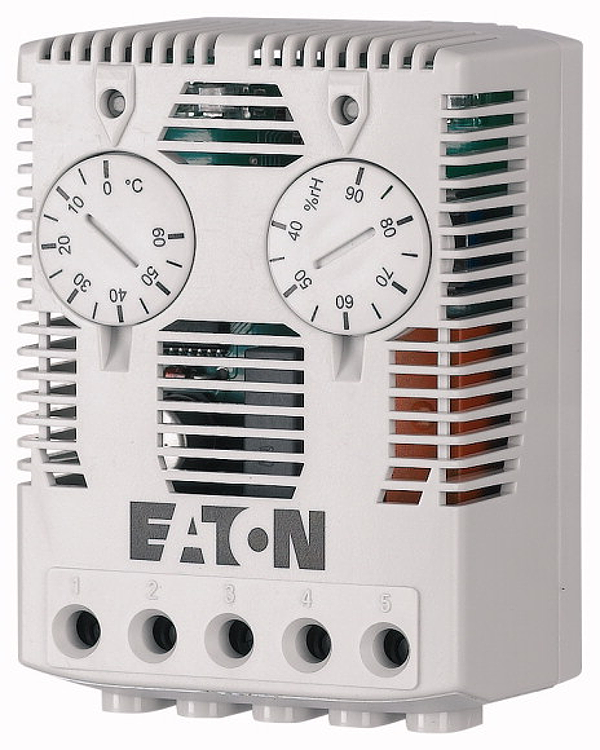

Thermostat and humidistat, manipulating range 40-90% rel. humidity and 0°C-60°C, with N/C and N/O, mains voltage 240V, degree of protection IP20

Description

Alternate Catalog No. TH-HYG. Electronic humidistat/thermostat combination device; changeover contact/relay; manipulating range 40-90% rel. humidity/0 °C... + 60 °C ; approx. 2K ± 1K / approx. 4% rel. humidity ± 1% ; max. switching duty 240V AC/8A or 120V AC/8A or 24V DC/4A; degree of protection IP20; suitable for operating fans and heating systems; operation indication by LED; screw terminals for 0.5-2.5mm² cable cross-section; snap fitting for 35mm rigid busbar as per EN 60715; color RAL7035
