Product
Eaton
166831
E59-A12A104C02-C1
Request a Quote
Image copyright: Eaton

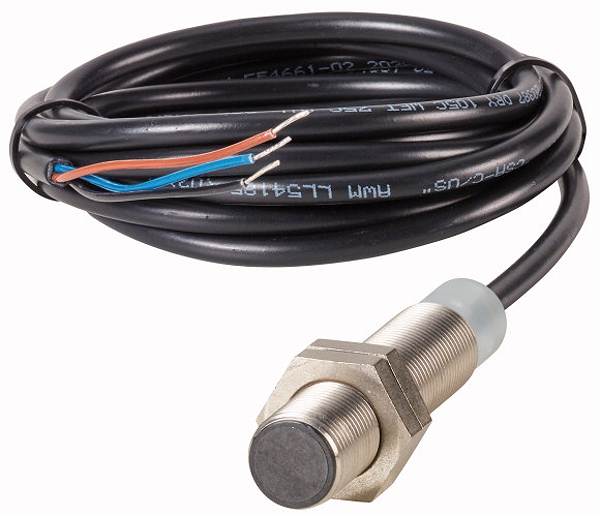

Eaton 166831
E59-A12A104C02-C1
Proximity Sensor, M12, analog, Sn=0.5-4mm, 15-30VDC, 4-20mA, line 2m
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. E59-A12A104C02-C1. Proximity Sensor, Inductive Sensors, Product range: E59 AccuProx Series, Description: Current output (4 - 20 mA), Connection: 3-wire/4-wire, Design (outer dimensions): M12 x 1 mm, Rated operational voltage: Ue= 15 - 30 V DC, Rated switching distance: Sn= 0.5 - 4 mm, Type of mounting: Flush, Switching type: Analog, 2 m connection cable, Material: Stainless steel, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2
Logistic parameters
| ECCN: | |
| Country of Origin: | MX |
| EAN: | |
| Weight: | 0.45 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
