Eaton 148585
SLPEN63011

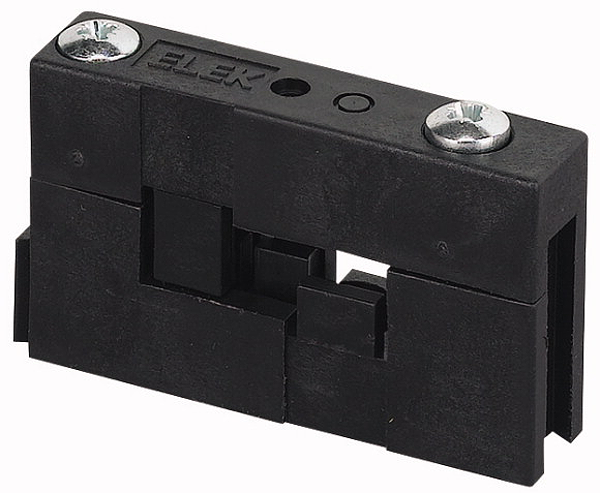

Space unit/N busbar support, 1p, 12x5-30x10 (60mm)
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. SLPEN63011. Busbar support space unit/N for distribution system EP, 60 mm system, rated operational current Ie=630A, poles=1, can be used for 12x5/10 to 30x5/10, with removable contact element for adapting to the busbar size, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to the distribution board's short-circuit strength diagram, expandable to 4- and 5-poles by inserting into the 3-pole SL6303 clamp
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
