Eaton
12BDGHC20
12KV 20AMP 2" 'C' AIR FUSE
Request a Quote
Image copyright: Eaton

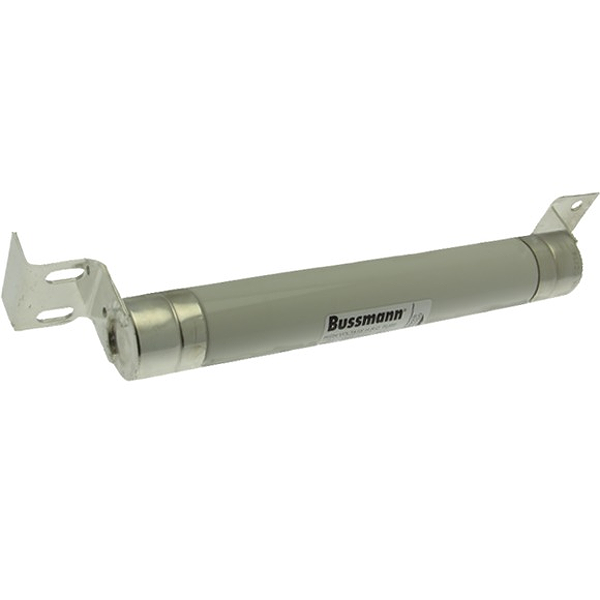

Eaton 12BDGHC20
12KV 20AMP 2" 'C' AIR FUSE
Air fuse-link, medium voltage, 20 A, AC 12 kV, BS TA3, 461 x 50.8 mm, back-up, BS, with striker
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Fuse, Air fuse-link, medium voltage, 20 A, AC 12 kV, BS TA3, 461 x 50.8 mm, back-up, BS, with striker, cylindrical, offset bolted tags, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2962-1, Breaking Capacity 40 kA
Logistic parameters
| ECCN: | |
| Country of Origin: | HU |
| EAN: | |
| Weight: | 2.19 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
