Product
Eaton
114321
D02-LTS/63-3N
Request a Quote
Image copyright: Eaton

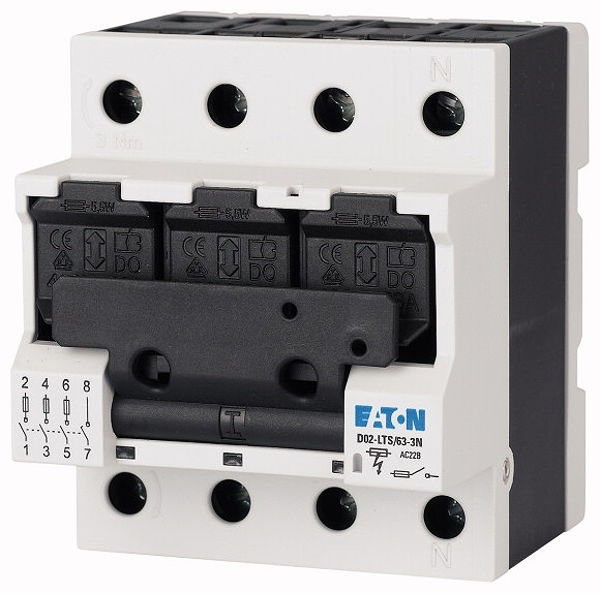

Eaton 114321
D02-LTS/63-3N
Switch-disconnector, 63AV, 3Np, D02, HK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Rated operating voltage 400 VAC, suitable for fuse links with utilization class gG (gL), aM, only 4 space units wide, can be busbared with residual current, current coding using sleeve adapter inserts, can be sealed, double conductor run possible on both sides, version with auxiliary contact D02-LTS/63-3-HK, retaining springs for D01 fuse links or cylindrical inserts 10x38 supplied
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.38 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
