Eaton 107194
AKU120/10

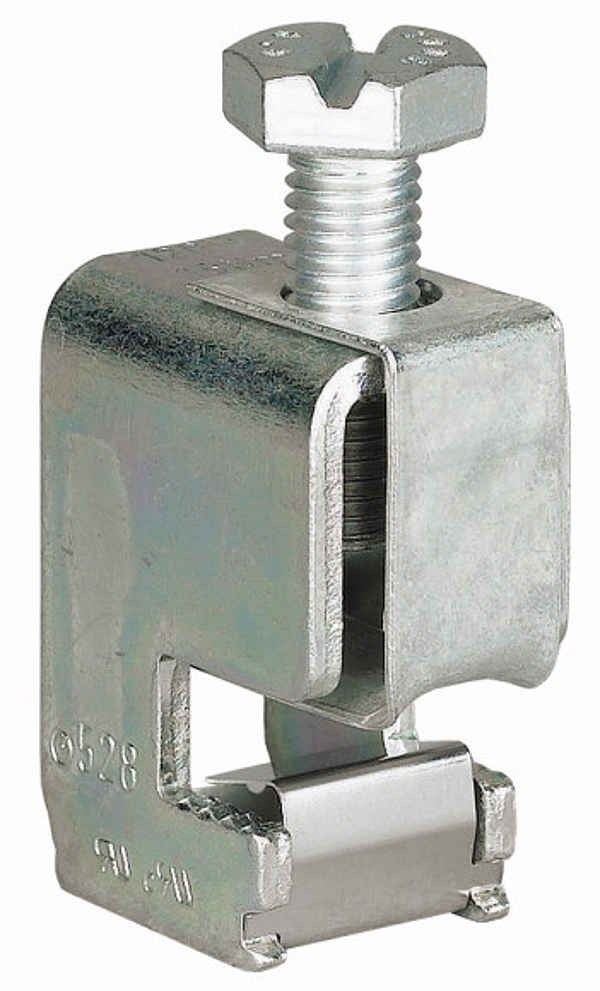

Conductor connection terminal 16-120mm², 10 mm
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 2465032. Universal conductor connection terminal, 16-120mm² AWG 4-MCM 250., directly terminated, 4x16x0.8, or 6x16x0.8, or 10x16x0.8, 440A, can be used for all 10mm thick flat busbars, width=23.5mm, termination space WxH=17x15mm, with integrated retaining spring, with open terminal chamber and captive fixing screw, can be used for SASY60i, SASY185i
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.10 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
