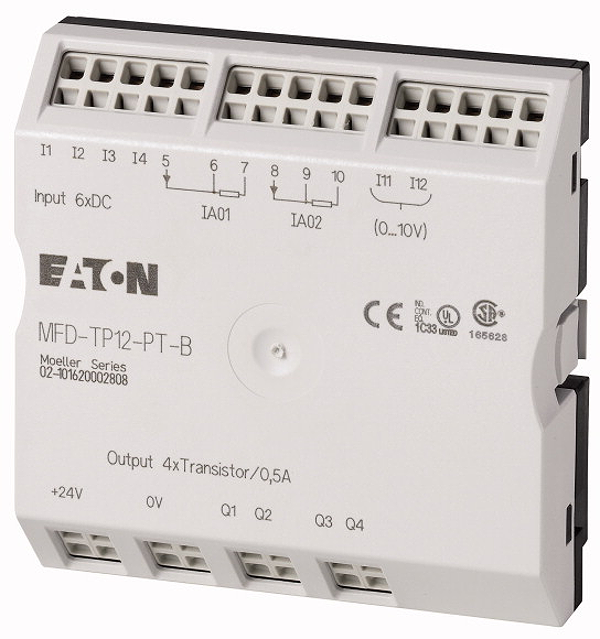

Eaton 106043
MFD-TP12-PT-B
I/O module with temperature measuring, range B, 6DI(2AI), 2I-Pt100, 4DO-Trans
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 4519716. I/O module with temperature measuring, power supply 24 VDC, is snapped onto MFD-AC-CP8 beginning with device version 08/CP10, 6 digital inputs of which 2 inputs are available as analog inputs, 2 inputs as temperature inputs with Pt100, 4 transistor outputs, configurable temperature range: -200 up to +200/0up to+850 °C
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | 4015081058112 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
