Eaton 100783

NZM3-4-XK300

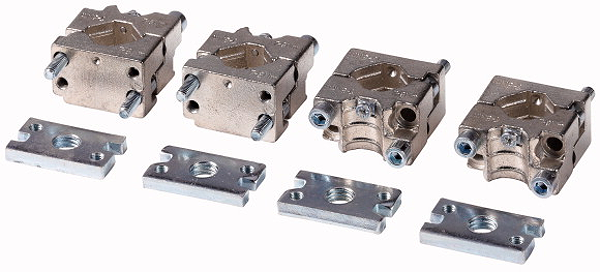

Connection terminal, 300mm², 4p

Description

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. Only in combination with connection width extension NZM3(-4)-XKV70. Use ferrules with flexible and highly flexible conductors. standard with control circuit terminal for 1x0.75-2.5 mm 2 or 2x0.75-1.5 mm 2 copper conductors. Can be used for: NZM3(-4), PN3(-4), N3(-4)
