Product
Eaton
093303
P1-32/IVS
Request a Quote
Image copyright: Eaton

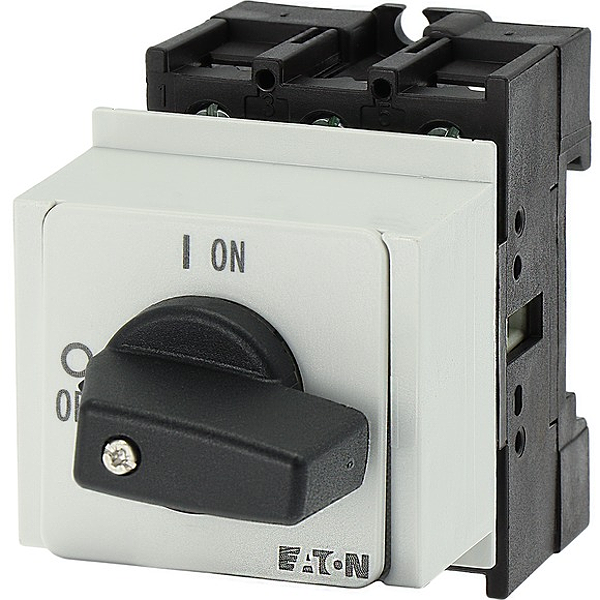

Eaton 093303
P1-32/IVS
On-Off switch, P1, 32 A, service distribution board mounting, 3 pole, with black thumb grip and front plate
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 0001456112. On-Off switch, Product range: On-Off switch, Part group reference: P1, with black thumb grip and front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP30, Design: service distribution board mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Logistic parameters
| ECCN: | |
| Country of Origin: | GB |
| EAN: | |
| Weight: | 0.15 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
