Product
Eaton
081222
CU-BAND6X16X0,8-BU
Request a Quote
Image copyright: Eaton
Eaton 081222
CU-BAND6X16X0,8-BU

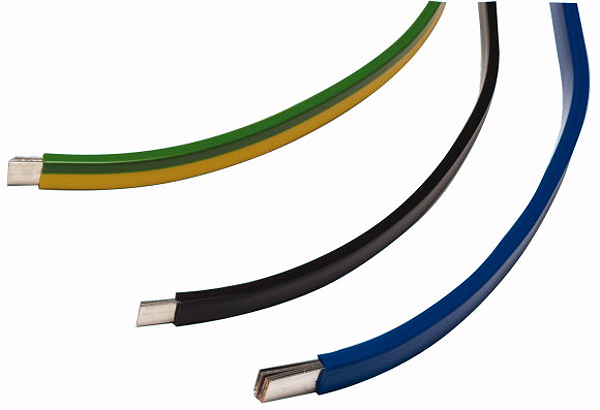

Copper strip, tinned, 250A, 6x16x0.8mm, blue. Медные гибкие шины, 250A , 6x16x0.8mm , синий
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=6x16x0.8mm, color blue, rated operational current Ie=250 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 1.57 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
