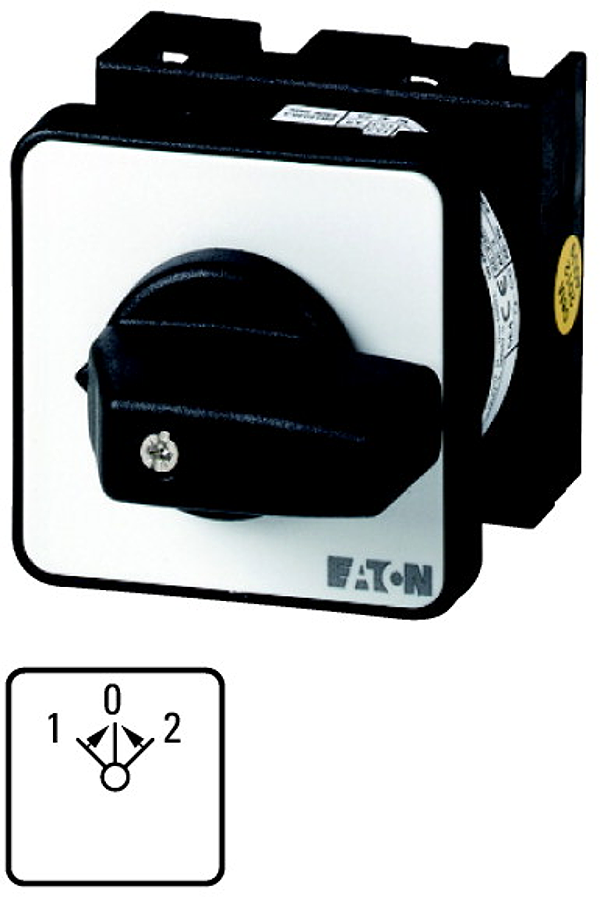

Eaton 011689

T0-2-8179/EZ

Revolving contact, T0, 20 A, centre mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 1>0<2, Design number 8179

Description

Revolving contact, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: centre mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1>0<2
