Product
Di-soric
209803
IRB 10 PS-B3
Request a Quote

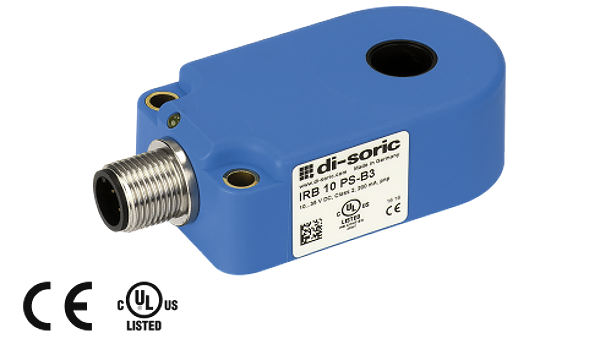

Image copyright: Di-soric
Di-soric 209803
IRB 10 PS-B3
Inductive Ring Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Quick commissioning, no setting elements. No risk of wrong adjustments. High protection class IP 67. Short response time. Insensitive to dirt. Static working principle. Metal connector
Downloads
Technical parameters
| Operating principle: | Static |
| Inside diameter: | 10,1 mm |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 11 mA |
| Resolution: | Ø 2,0 mm |
| Sensitivity adjustment: | no setting elements |
| Switching output: | pnp, 200 mA, NO |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Speed of parts: | < 35 m/s |
| Pulse stretching: | 150 ms |
| Voltage drop: | < 2,0 V |
| Readiness delay: | < 300 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 1.000 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | polyamide / ring POM |
| Connection: | Connector, M12, 4-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
