Product
Di-soric
209801
MZEC 3.7 VPS-K-T3
Request a Quote

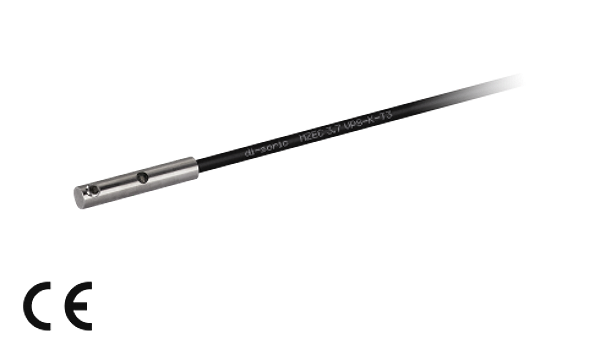

Image copyright: Di-soric
Di-soric 209801
MZEC 3.7 VPS-K-T3
Cylinder Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
For pneumatic cylinders with round slot 3.7 mm. Stainless steel casing. Stainless steel fastening part. Short design. Cable, highly flexible. All-electronically. High reproducibility. High protection class
Downloads
Technical parameters
| Cylinder groove: | C-groove 3.7 mm, mounting in longitudinal direction of slot |
| Mounting: | Locking screw, allen screw 1,3 mm |
| Maximum rating: | 100 mA, not short-circuit-proof, polarity-safe |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 11 mA |
| Switching output: | pnp, 100 mA, NO |
| Contact rating: | 3 W max. (30 V, 100 mA) |
| Display: | LED: yellow - output signal |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 1000 Hz |
| Reproducibility: | < 0,1 mm |
| Ambient temperature, operation: | -20 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | stainless steel V2A (1.4305 / AISI 303) |
| Material: | TPU (Cable) |
| Connection: | Cable, Connector, 0,3 m, M8 |
| Connecting cable: | TK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.01 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
