Product
Di-soric
209742
BE-A30/30-G5-K-BS
Request a Quote
Image copyright: Di-soric

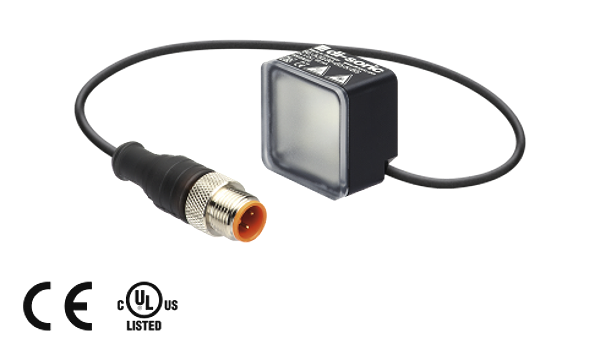

Di-soric 209742
BE-A30/30-G5-K-BS
High power barlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High light intensity. A minimal edge region. Homogenous luminous field. Very compact design. High protection class IP 67. Robust design
Downloads
Technical parameters
| Design: | Barlight |
| Illuminated area: | 30 x 30 mm |
| Light colour: | White, 5000 K |
| Emission angle FWHM: | 130° |
| Illumination intensity: | 2.1 klx (0.1 m), 600 Lux (0.2 m), 300 Lux (0.3 m) |
| Service voltage: | 24 V DC (Supply Class 2) |
| No-load current: | 46 mA, (24 V DC) |
| Power: | 1,1 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | No |
| Ambient temperature, operation: | 0 … +40 °C (permanent operation) |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PMMA, clear (Protection optics) |
| Connection: | Cable, 0,3 m, with connector, M12, 3-poled |
| Weight: | 45 g |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.07 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
