Product
Di-soric
209740
BEK-PM12-G5T-BS
Request a Quote

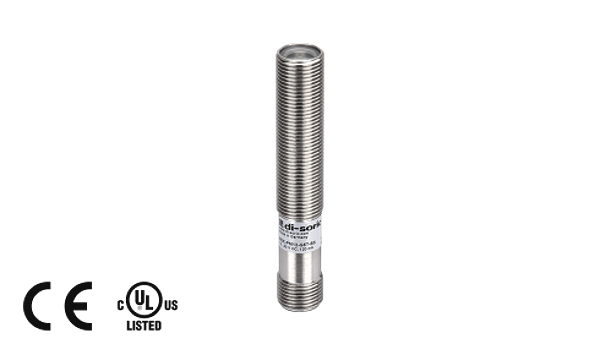

Image copyright: Di-soric
Di-soric 209740
BEK-PM12-G5T-BS
Spotlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Extrem small design. Homogenous illumination. Protection class IP 67. All-purpose trigger input. High efficiency. Low levels of heat produced. Robust metal casing
Downloads
Technical parameters
| Size: | M12 x 1 (thread) |
| Characteristics: | Internal control of power output, Trigger input |
| Light colour: | White, 6000 K |
| Emission angle FWHM: | 25° |
| Illumination intensity: | 4.0 klx (0.1 m), 1.0 klx (0.2 m), 200 Lux (0.5 m) |
| Service voltage: | 10 ... 30 V DC (Supply Class 2) |
| No-load current: | < 120 mA, (10 V DC) |
| Light outlet: | axial |
| Trigger input low level: | < 3 V |
| Trigger input high level: | > 4 V |
| Power: | 1,2 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| On-delay time (Trig.): | 0,012 ms |
| Switch off delay (Trig.): | 0,012 ms |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 65, IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Risk group 1 |
| Casing material: | brass nickel plated |
| Material: | PMMA (Protection optics) |
| Connection: | Connector, M12 x 1, 4-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.05 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
