Product
Di-soric
209551
BE-R30-G1-K-BS-CLR
Request a Quote
Image copyright: Di-soric

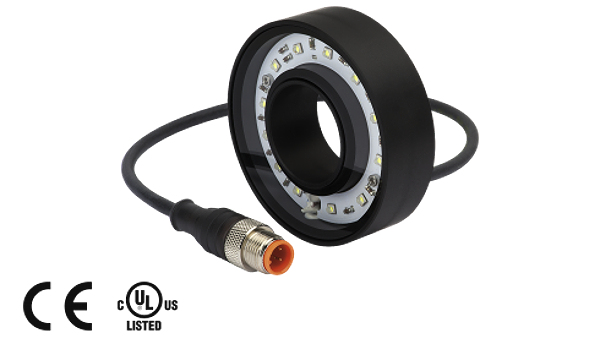

Di-soric 209551
BE-R30-G1-K-BS-CLR
Ringlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High light intensity thanks to most modern high power LEDs. Very compact design. Long-life thanks to intelligent thermal management. Homogenous illumination. Protection class IP 67. Robust metal casing
Downloads
Technical parameters
| Size: | Ø 30 mm, Ø 69 mm (Diameter) 20 mm (Height) |
| Design: | Ringlight |
| Characteristics: | Most modern high power LEDs |
| Light colour: | Red, clear, 625 nm |
| Emission angle FWHM: | 80° |
| Illumination intensity: | 9.0 klx (0.1 m), 2.9 klx (0.2 m), 1.35 klxx (0.3 m) |
| Service voltage: | 24 V DC (Supply Class 2) |
| Power: | 5,1 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Ambient temperature, operation: | 0 … +40 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PUR (Cable) PMMA, clear (Protection optics) |
| Connection: | Cable, 0,3 m, with connector, M12, 3-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.17 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
