Product
Di-soric
209540
ST 7PNG
Request a Quote
Image copyright: Di-soric

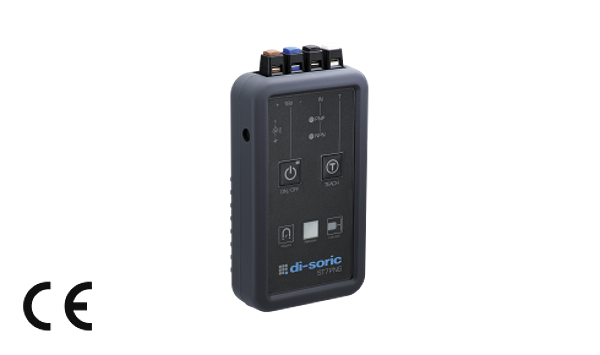

Di-soric 209540
ST 7PNG
Sensor Tester
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Teach output for remote teach. Automatic detection pnp/npn/push-pull. Visual and acoustic signal. Buzzer can be switched off. Operation via batteries and external power supply. Quick-action sockets. Automatic switch-off. Compact design and low weight. Shock protection trough silicone casing
Downloads
Technical parameters
| Size: | 141 x 82 x 34 mm (Dimensions) |
| No-load current: | < 40 mA |
| Output voltage: | 18 V DC |
| Protection class: | IP 21 |
| Application: | pnp, npn and push-pull sensors |
| Connection: | quick-action sockets |
| Current limiting: | 60 mA in battery operation, 240 mA in operation with external power supply |
| Scope of delivery: | 3 x 1.5 V alkaline batteries type AA |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.31 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
