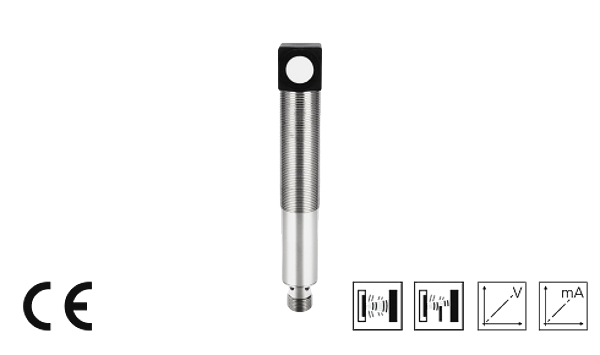

Image copyright: Di-soric
Di-soric 209509
UST18MR1500IU-B4
Ultrasonic sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
As a ultrasonic sensor or -barrier configurable. Scanning range adjustable. Analog output 4 .. 20 mA / 0 .. 10 V, depending on load. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. High frequency of measuring sequence. High resolution
Downloads
Technical parameters
| Operating principle: | Ultrasonic sensor, Ultrasonic barrier |
| Evaluation: | analog |
| Size: | M18 x 1 (thread) |
| Design: | screw |
| Sending axis: | radial |
| Service voltage: | 11 ... 30 V DC |
| No-load current: | 45 ... 65 mA |
| Operating distance: | 1500 mm |
| Adjustment range: | 120 ... 1500 mm |
| Resolution: | 0,5 mm |
| Sensitivity adjustment: | Remote teach |
| Switching hysteresis: | axial |
| Analog output: | 0 ... 10 V, 4 ... 20 mA, teachable |
| Measuring frequency: | 30 Hz |
| Sound frequency: | 180 kHz |
| Ripple: | 10 % |
| Linearity analog output: | 1 % / Sn max. |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Reproducibility: | 2 % / Sn max. |
| Ambient temperature, operation: | 0 … +60 °C |
| Temperature drift: | stabilized |
| Load resistance: | > 10 KΩ (0 ... 10 V) / < 400 Ω (4 ... 20 mA) |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | brass nickel plated |
| Connection: | Connector, M12 x 1, 4-poled |
| Scope of delivery: | 2 x M18 nuts, 2 x washers, 2 x rubber sleeves |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.14 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
