Product
Di-soric
209256
OR 31 K 5000 P3-3
Request a Quote

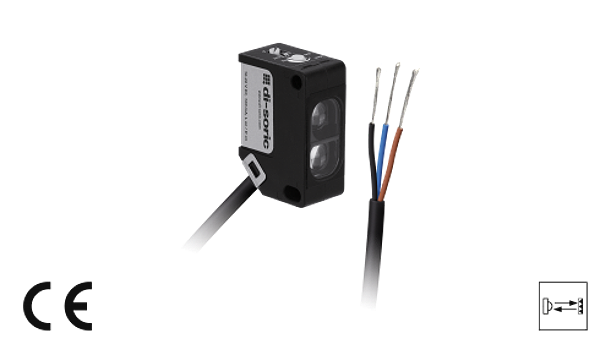

Image copyright: Di-soric
Di-soric 209256
OR 31 K 5000 P3-3
Retroreflective Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Compact design. Red light. Sensitivity adjustable. Light/dark switching switchable. High operating distance. Fully encapsulated electronic circuitry, vibration-resistant. Standardized hole spacing 25.4 mm
Downloads
Technical parameters
| Operating principle: | Retroreflective sensor |
| Evaluation: | digital |
| Size: | 31.2 x 21 x 12.8 (Dimensions) |
| Design: | cuboid design |
| Emitted light: | Red, 630 nm, clocked |
| Operating distance: | 20 … 5000 mm adjustable |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 30 mA |
| Sensitivity adjustment: | potentiometer |
| Referring reflector: | Ø 84 mm, R 84 |
| Switching output: | pnp, 100 mA, NO/NC, switchable |
| Switching hysteresis: | < 10 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 2000 Hz |
| Response-/release time: | 0,25 ms / 0,25 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Temperature drift: | 5 mm/K |
| Ambient light immunity: | 3 kLx, Halogen light, 10 kLx, Sunlight |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | plastics (polyamide - PA 6.6) |
| Material: | polymethyl methacrylate (Window) |
| Connection: | Cable, 2,0 m, 3-poled, flying leads |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
