Product
Di-soric
209200
SR-M
Request a Quote

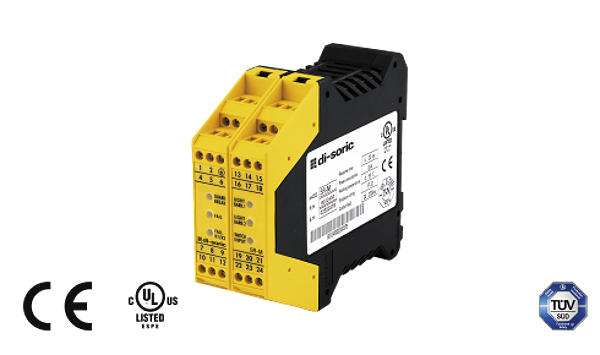

Image copyright: Di-soric
Di-soric 209200
SR-M
Safety relay
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Usable for safety light curtains / -grids with safety level type 2 and type 4. Integrated muting function. Additional security functions. Start / Restart Interlock. EDM Feedback input for extra external contractors monitoring. LED indicators for status, muting and diagnosis. Inverse polarity protection
Downloads
Technical parameters
| Characteristic parameters: | Type 4 (IEC/TS 61496-2), SILCL 3 (IEC 62061) PL e - Cat. 4 (EN ISO 13849-1) |
| Mounting: | rail fastening according to EN 50022-35 standard |
| Operating principle: | Safety relay with muting function |
| Size: | 99 x 35 x 114.5 mm (Dimensions) |
| Service voltage: | 19,2 ... 28,8 V DC |
| Inverse polarity protection: | Yes |
| Display: | LED for input / output status, muting sensor inputs and failure diagnosis |
| Start / restart: | automatic / manual (selectable on terminal block), interlock |
| External Device Monitoring - EDM: | Feedback input, enabling selectable |
| Reaction time: | < 20 ms |
| Ambient temperature, operation: | 0 … +55 °C |
| Protection class: | IP 20, (housing), IP 2X, (terminal blocks) |
| Suitable for: | all safety light curtains /-grids |
| Connection: | on terminal blocks |
| Scope of delivery: | Multi-language instruction manual |
| Two-channel inputs for safety light curtains / -grids: | 1 |
| Status output: | PNP (1x), 100 mA, 24 V DC |
| Inputs for muting sensors: | 2x, 24 V DC, PNP, dark-on |
| Muting enable input: | 24 V DC, PNP or relay (highly active) |
| Muting lamp output: | 24 V DC, 0,5 ... 5 W |
| Muting time-out: | 30 sec. or infinite, selectable |
| Override time-out: | 15 min. |
| Override: | 2 operating modes selectable: manual action with hold to run or automatic with pulse command |
| Safety relay outputs: | NO (2x), 2 A / 250 V AC |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.30 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
