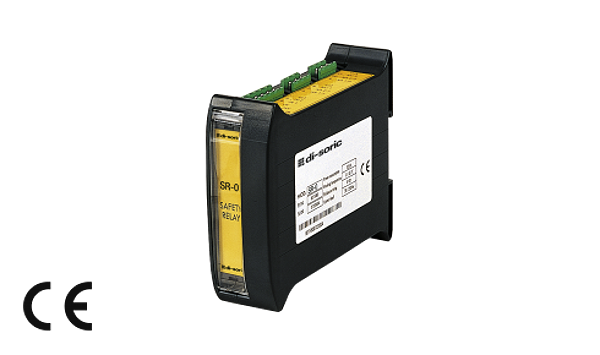

Image copyright: Di-soric
Di-soric 209198
SR-0
Interface relay
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Usable for all safety light curtains / -grids with External Device Monitoring - EDM. With two guided-contact safety relays. Control and monitoring directly by the light curtain / -grid. Inverse polarity protection
Downloads
Technical parameters
| Mounting: | rail fastening according to EN 50022-35 standard |
| Operating principle: | Interface relay |
| Size: | 101 x 35 x 120 mm (Dimensions) |
| Characteristics: | Each NO safety output line is interrupted twice by the two relays |
| Service voltage: | 19,2 ... 28,8 V DC |
| Inverse polarity protection: | Yes |
| External Device Monitoring - EDM: | Feedback output (1x NC) |
| Reaction time: | < 20 ms |
| Ambient temperature, operation: | 0 … +55 °C |
| Protection class: | IP 20, (housing), IP 2X, (terminal blocks) |
| Suitable for: | Safety light curtains /-grids SLI... and SLIH... |
| Connection: | on terminal blocks |
| Scope of delivery: | Multi-language instruction manual |
| Safety relay outputs: | NO (2x) + NC (1x), 2 A / 250 V AC |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.25 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
