Di-soric
208335
OR 18-1 M 3000 N4-4
Request a Quote

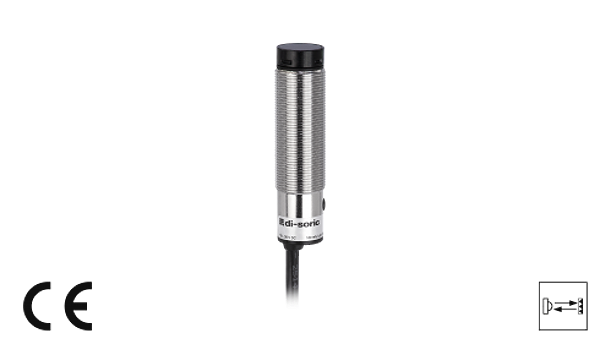

Image copyright: Di-soric
Di-soric 208335
OR 18-1 M 3000 N4-4
Retroreflective Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Compact design. Red light. Polarized filter. Sensitivity adjustable. High resolution, operating frequency, functional reserve. High operating distance. Antivalent output
Downloads
Technical parameters
| Operating principle: | Retroreflective sensor |
| Evaluation: | digital |
| Size: | M18 x 1 (thread) |
| Design: | screw |
| Emitted light: | Red, 660 nm, clocked, polarized |
| Operating distance: | 3000 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 30 mA |
| Sensitivity adjustment: | potentiometer |
| Referring reflector: | Ø 84 mm, R 84 |
| Switching output: | npn, 100 mA, exclusive OR |
| Switching hysteresis: | < 10 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 250 Hz |
| Response-/release time: | 2,0 ms / 2,0 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Temperature drift: | 3 mm/K |
| Ambient light immunity: | 5 kLx, Halogen light, 10 kLx, Sunlight |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | brass nickel plated |
| Material: | polymethyl methacrylate (Window) PVC (Cable) |
| Connection: | Cable, 2,0 m, 4-poled, flying leads |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.13 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
