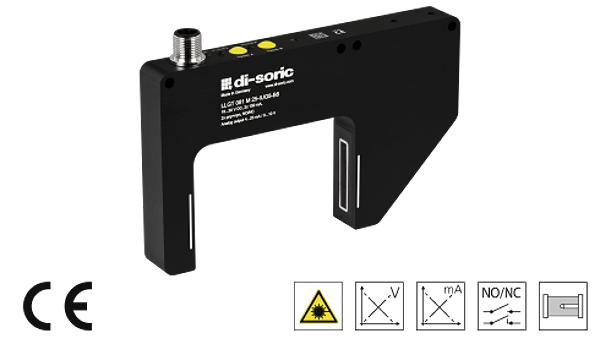

Di-soric 207338
LLGT 081 M 25 IUG8-B8
Laser Line Fork Light Barrier
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Resolution 20µm. Current / voltage output switchable. Teach-in for measuring area and switching outputs. Remote teach option with key-lock function. Switching outputs with window mode. Large measuring area. Robust metal casing
Downloads
Technical parameters
| Operating principle: | Optical |
| Evaluation: | digital, analog |
| Size: | 150 x 90 x 18 mm (Dimensions) |
| Design: | fork |
| Fork opening: | 80 mm |
| Branch length inside: | 55 mm |
| Emitted light: | Red light laser, 650 nm, clocked |
| Laser class: | 1 (IEC 60825-1) |
| Service voltage: | 18 ... 30 V DC |
| No-load current: | 70 mA, (24 V DC) |
| Resolution: | 0,02 mm (Analogausg./analog outp./Sortie anal.) |
| Smallest detectable object: | Ø 0,5 mm (Schaltausg./switching outp./Sortie de commutation) |
| Measuring range: | 25 mm |
| Sensitivity adjustment: | Teach key + remote teach |
| Switching output: | Push pull (2x), 150 mA, NO/NC, switchable |
| Switching hysteresis: | 0,1 mm |
| Analog output: | 0 ... 10 V, 4 ... 20 mA |
| Admissible impedance: | < 500 Ω, > 1k Ω |
| Measuring frequency: | 200 Hz |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Display: | LED: green - operation, yellow - outputs |
| Voltage drop: | < 2,0 V |
| Linearity error: | ± 0,3 % |
| Ambient temperature, operation: | +5 … +45 °C |
| Ambient light immunity: | 5 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Material: | float glass (Protection optics) |
| Connection: | Connector, M12, 8-poled |
| Connecting cable: | VK ... /8 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.33 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
