Di-soric 207152
BE-R130-F1-K-DIF

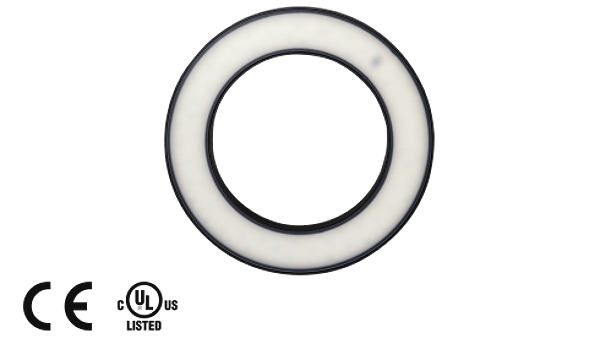

Ringlight for flash controller
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High excess current factor. Pulsed mode for inspection of fast moving objects. Extremely powerful light for high depth of field. Long-life thanks to intelligent thermal management. Homogenous luminous field. High protection class IP 67. Robust metal casing
Downloads
Technical parameters
| Pulse power consumption (max): | 230 W |
| Pulse overload factor: | 8 |
| Pulse current capacity: | 12000 mA |
| Size: | Ø 131 mm, Ø 200 mm (Diameter) 20 mm (Height) |
| Design: | Ringlight |
| Characteristics: | Flashable by means of flash controller |
| Light colour: | Red, diffuse, 633 nm |
| Emission angle FWHM: | 30° |
| Illumination intensity: | 2.3 klx (0.3 m / 100%) 9.2 klx (0.3 m / 400%) 17.2 klx (0.3 m / 800%) 1.0 klx (0.5 m / 100%) 4.0 klx (0.5 m / 400%) 7.4 klx (0.5 m / 800%) |
| Service voltage: | No constant voltage! |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| Ambient temperature, operation: | 0 … +40 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PUR (Cable) PMMA, diffus (Protection optics) |
| Connection: | Cable, 2,5 m, flying leads, Use only with flash equipment! |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.84 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
