Product
Di-soric
206977
ORT 41 M 10 FG3-T4
Request a Quote

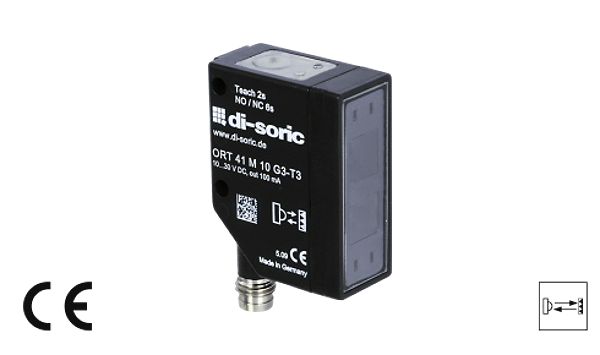

Image copyright: Di-soric
Di-soric 206977
ORT 41 M 10 FG3-T4
Retroreflective Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High operating distances with a small design. Plug, rotatable 270°. Dovetail groove for secure mounting. NO/NC programmable. Auto and two-point teach procedures. Visible red light with small light spot. Small metal casing design. Display for unstable function
Downloads
Technical parameters
| Operating principle: | Retroreflective sensor |
| Evaluation: | digital |
| Size: | 41 x 31,5 x 16 mm (Dimensions) |
| Design: | cuboid design |
| Emitted light: | Red, 630 nm, clocked |
| Operating distance: | 200 … 10000 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 40 mA |
| Sensitivity adjustment: | Teach key + remote teach |
| Referring reflector: | 100 x 100 mm |
| Switching output: | Push pull, 200 mA, NO/NC, switchable |
| Switching hysteresis: | < 10 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 1000 Hz |
| Reproducibility: | < 1 % |
| Ambient temperature, operation: | -20 … +60 °C |
| Ambient light immunity: | 50 kLx |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Die-cast zinc black lacquered finish |
| Material: | polymethyl methacrylate (Window) |
| Connection: | Connector, M8, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.07 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
