Product
Di-soric
206810
BEK-F200/200-G2TI-IBS
Request a Quote
Image copyright: Di-soric

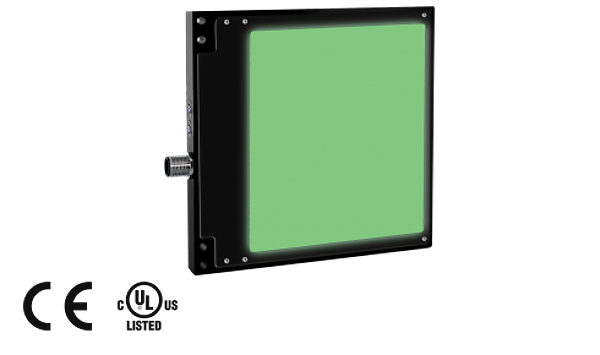

Di-soric 206810
BEK-F200/200-G2TI-IBS
Backlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Constant level of light intensity over the entire voltage range. Homogenous luminous field. High efficiency. Light intensity can be adjusted
Downloads
Technical parameters
| Design: | Backlight |
| Illuminated area: | 200 x 200 mm |
| Characteristics: | Internal control of power output, Trigger input |
| Light colour: | Green, 525 nm |
| Service voltage: | 18 ... 35 V DC (Supply Class 2) |
| No-load current: | 550 mA, (24 V DC) |
| Trigger input low level: | 0 … < 2,8 V |
| Trigger input high level: | > 3,3 … 35 V |
| Power: | 13,2 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| Display: | LED: green - Operation |
| Ambient temperature, operation: | 0 … +50 °C |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PC, opal diffus (Protection optics) |
| Connection: | Connector, M12, 3-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 2.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
