Product
Di-soric
206712
BEK-F100/100-G1TI-IBS
Request a Quote

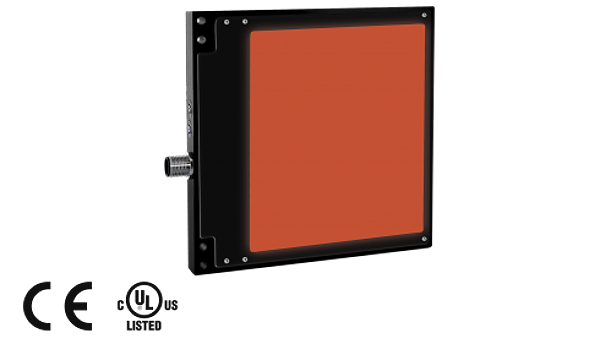

Image copyright: Di-soric
Di-soric 206712
BEK-F100/100-G1TI-IBS
Backlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Constant level of light intensity over the entire voltage range. Homogenous luminous field. High efficiency. Light intensity can be adjusted
Downloads
Technical parameters
| Design: | Backlight |
| Illuminated area: | 100 x 100 mm |
| Characteristics: | Internal control of power output, Trigger input |
| Light colour: | Red, 625 nm |
| Service voltage: | 15 ... 35 V DC (Supply Class 2) |
| No-load current: | 250 mA, (24 V DC) |
| Trigger input low level: | 0 … < 2,8 V |
| Trigger input high level: | > 3,3 … 35 V |
| Power: | 6,0 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| Display: | LED: green - Operation |
| On-delay time (Trig.): | 0,364 ms |
| Switch off delay (Trig.): | 0,220 ms |
| Ambient temperature, operation: | 0 … +50 °C |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PC, opal diffus (Protection optics) |
| Connection: | Connector, M12, 3-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.63 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
