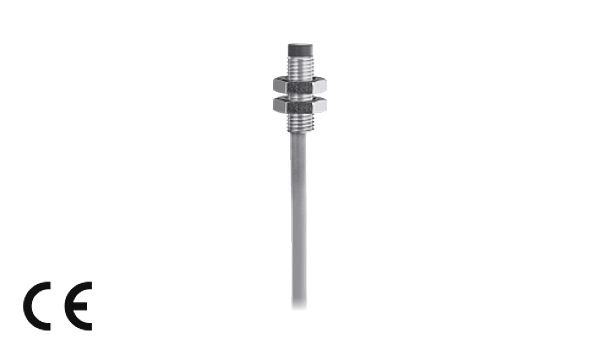

Di-soric 205187
DCC08V2.5NOLK/22
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Cable, highly flexible. Integrated amplifier. Short-circuit protection. Starting pulse suppression. LED
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | digital |
| Size: | M8 x 1 (thread) |
| Design: | screw |
| Mounting: | non-flush |
| Characteristics: | increased operating distance |
| Operating distance: | 2,5 mm |
| Standardized measuring plate: | 8 x 8 x 1 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 10 mA |
| Switching output: | npn, 200 mA, NC |
| Switching hysteresis: | 5 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,4 V |
| Switching frequency: | 3000 Hz |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | stainless steel |
| Material: | PVC (Cable) |
| Connection: | Cable, 2,0 m |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
