Product
Di-soric
204805
MZEKS 25 PS-K-TSSL
Request a Quote

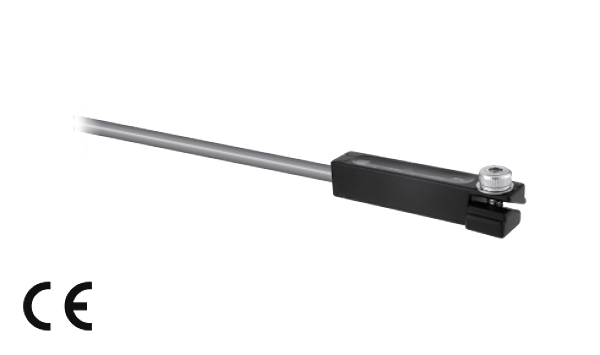

Image copyright: Di-soric
Di-soric 204805
MZEKS 25 PS-K-TSSL
Sensor for Gripper Systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Special magnet field for use on gripping tongs with T-shaped slot. Short design. All-electronically. Fully encapsulated electronic circuitry, vibration-resistant. High reproducibility. High protection class
Downloads
Technical parameters
| Cylinder groove: | T-groove, to be inserted from above in the slot |
| Mounting: | clamping block |
| Maximum rating: | 100 mA, not short-circuit-proof, polarity-safe |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 12 mA |
| Switching output: | pnp, NO, short circuit protected |
| Contact rating: | 3 W max. (30 V, 100 mA) |
| Display: | LED: yellow - output signal |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 1000 Hz |
| Reproducibility: | < 0,1 mm |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 68, (Device and cable), IP 67, (Connector) |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Die-cast zinc |
| Material: | PUR (Cable) |
| Connection: | Cable, Connector, 0,3 m, M8 |
| Connecting cable: | TK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.02 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
