Product
Di-soric
203764
MS 70 PSL-K-BS
Request a Quote
Image copyright: Di-soric

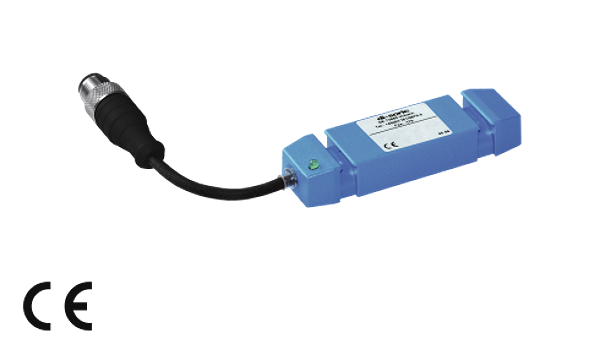

Di-soric 203764
MS 70 PSL-K-BS
Magnetic Field Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Detection of current flow in welding cables. Compact design. Low weight. Cable with plug M12. Slot for quick mounting
Downloads
Technical parameters
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 10 mA |
| Switching output: | pnp, 200 mA, NO |
| Magnetic activation field: | 5 mT |
| Field type: | AC/DC, frequency afflicted |
| Pulse stretching: | 150 ms |
| Display: | LED: yellow - output signal |
| Voltage drop: | < 2,0 V |
| Response-/release time: | 0,06 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | plastics (polycarbonate - PC) |
| Connection: | Connector, M12, 3-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.03 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
