Product
Di-soric
203351
DCC 18 VH 05 PSK/180
Request a Quote

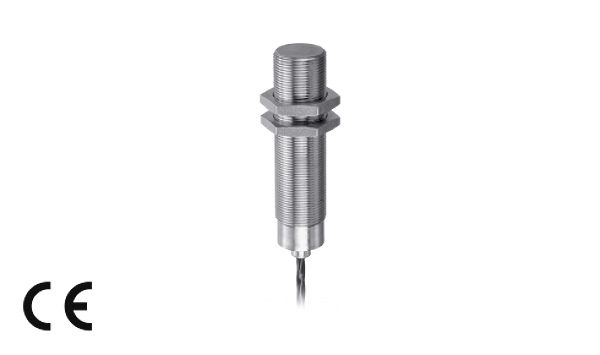

Image copyright: Di-soric
Di-soric 203351
DCC 18 VH 05 PSK/180
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High-temperature resistant up to 180 °C permanent temperature. Stainless steel casing. Active zone LCP. Integrated amplifier. Short-circuit protection. Starting pulse suppression
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | digital |
| Size: | M18 x 1 (thread) |
| Design: | screw |
| Mounting: | flush |
| Characteristics: | up to 180 °C, high-temperature resistant |
| Operating distance: | 5 mm |
| Standardized measuring plate: | 18 x 18 x 1 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 10 mA |
| Switching output: | pnp, 200 mA, NO |
| Switching hysteresis: | 2 ... 20 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 400 Hz |
| Ambient temperature, operation: | 0 … +180 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 65 |
| Casing material: | stainless steel LCP |
| Material: | PTFE (Cable) |
| Connection: | Cable, 2,0 m |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.05 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
