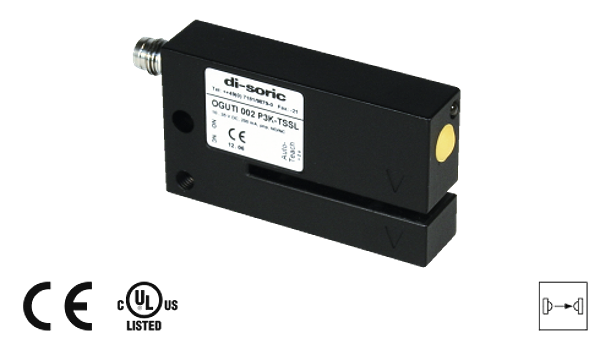

Image copyright: Di-soric
Di-soric 202659
OGUTI 002 P3K-TSSL
Optical Label Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Fast, simple, reliable: sensitivity adjustment via the teach key. Auto-teach during a running process. LED indicator for the teach procedure. Detection of an extremely wide range of different labels. Large functional reserve. Light/dark switching. 5-year warranty
Downloads
Technical parameters
| Operating principle: | Optical |
| Evaluation: | digital |
| Size: | 35 x 60 x 14 mm (Dimensions) |
| Design: | fork |
| Fork opening: | 2 mm |
| Branch length inside: | 40 mm |
| Emitted light: | Infrared, 880 nm, clocked |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 35 mA |
| Resolution: | Ø 0,5 mm |
| Sensitivity adjustment: | Teach key |
| Switching output: | pnp, 200 mA, NO/NC, switchable |
| Switching hysteresis: | < 0,1 mm |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 3000 Hz |
| Reproducibility: | < 0,03 mm |
| Ambient temperature, operation: | -10 … +60 °C |
| Ambient light immunity: | 40 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Die-cast zinc black lacquered finish |
| Connection: | Connector, M8, 3-poled |
| Connecting cable: | TK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.09 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
