Product
Di-soric
202451
USS 46 K 1500-TSSL
Request a Quote

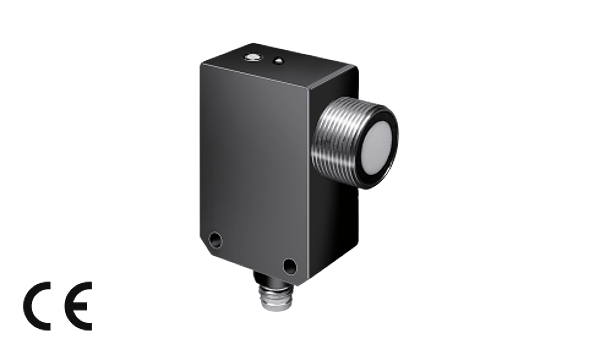

Image copyright: Di-soric
Di-soric 202451
USS 46 K 1500-TSSL
Ultrasonic Through Beam Sensor, Transmitter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Without blind zone. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface
Downloads
Technical parameters
| Operating principle: | Ultrasonic through beam sensor |
| Size: | 46 x 30 x 18 mm (Dimensions) |
| Design: | cuboid design |
| Service voltage: | 18 ... 30 V DC |
| No-load current: | < 55 mA |
| Operating distance: | 0 ... 1500 mm |
| Sound frequency: | 180 kHz |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Ambient temperature, operation: | -20 … +50 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | stainless steel, plastics V2A (1.4301 / AISI 304), (Polyamide - PA) |
| Connection: | Connector, M8, 3-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
