Di-soric
201278
OGU 050/20 IP3K-IBS
Request a Quote

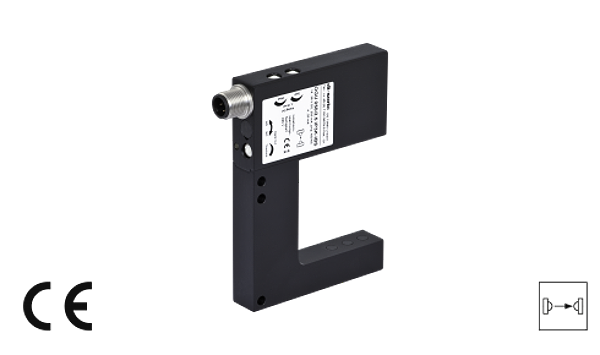

Image copyright: Di-soric
Di-soric 201278
OGU 050/20 IP3K-IBS
Fork Light Barrier, analog
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Analog output. IR-light. Metal casing. LED integrated in housing
Downloads
Technical parameters
| Operating principle: | Optical |
| Evaluation: | analog |
| Size: | 105 x 75 x 15 mm (Dimensions) |
| Design: | fork |
| Fork opening: | 50 mm |
| Branch length inside: | 50 mm |
| Emitted light: | Infrared, clocked |
| Service voltage: | 15 ... 35 V DC (Supply Class 2) |
| No-load current: | < 80 mA |
| Detection range: | 20 mm |
| Resolution: | Ø 0,5 mm |
| Sensitivity adjustment: | potentiometer |
| Switching output: | pnp, 200 mA, NO/NC, switchable |
| Switching hysteresis: | < 10 % |
| Analog output: | 4 ... 20 mA |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,8 V |
| Switching frequency: | 2000 Hz, (depending on the threshold value set) |
| Reproducibility: | 0,05 mm |
| Linearity error: | 5% |
| Ambient temperature, operation: | +5 … +50 °C |
| Ambient light immunity: | 10 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M12, 4-poled |
| Note: | For a proper function we recommend to use shielded connecting cables, the shielding has to be connected to PE. |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.18 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
