Product
Di-soric
201118
MS-W-12/4
Request a Quote
Image copyright: Di-soric
Di-soric 201118
MS-W-12/4

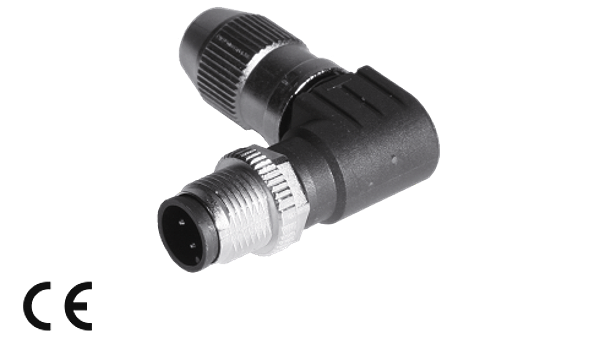

Connector
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Metal/plastic housing. Turnable metal screw. Quick mounting without tools. High protection class
Downloads
Technical parameters
| Design: | angled |
| Service voltage: | 32 V DC |
| Ambient temperature, operation: | -25 … +85 °C |
| Protection class: | IP 67 |
| Casing material: | Metal/Plastic |
| Connection sensor side: | Field-wireable, Insulation displacement connectors, 4-poled |
| Connection control side: | Connector, M12x1, 4-poled |
| For cable diameters: | 4,0 ... 5,1 mm |
| For Ø vein: | 1,0 ... 1,6 mm, (Wire must not be stripped!) |
| For stranded wire cross section: | 0,25 ... 0,50 mm² |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.03 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
