Product
Di-soric
200494
DCCK 30 M 20/10 AIK
Request a Quote

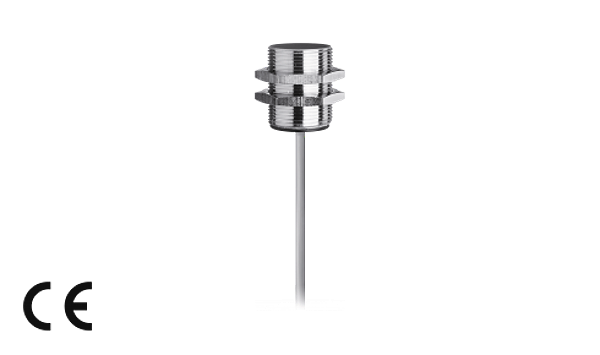

Image copyright: Di-soric
Di-soric 200494
DCCK 30 M 20/10 AIK
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Analog voltage output. Analog currant output. Cable, highly flexible. Integrated amplifier. Short-circuit protection
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | analog |
| Size: | M30 x 1,5 (thread) |
| Design: | screw |
| Mounting: | quasi-flush |
| Characteristics: | extremely high operating distance |
| Operating distance: | 0 … 20 mm |
| Standardized measuring plate: | 60 x 60 x 1 mm |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | < 12 mA |
| Analog output: | 0 ... 10 V, 4 ... 20 mA |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 500 Hz |
| Reproducibility: | ± 0,05 mm (TA = constant) / 0,3 mm (23°C ± 5°C) |
| Ambient temperature, operation: | -25 … +45 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | brass nickel plated |
| Material: | PUR (Cable) |
| Connection: | Cable, 2,0 m |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.17 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
